| Brand Name: | DYS/OEM |
| Model Number: | 1*4 lgx splitter module |
| Price: | $9.00 - $35.00/pieces |
FTTx Systems
Digital, hybrid and AM-Video systems
LAN,WAN and Metro Networks
CATV systems
Other applications in fiber optic systems
Low Insertion loss and Low PDL
Uniform power splitting
High reliability
Excellent environmental stability
Compact size and various package
ABS PLC splitter with SC APC connector
type PLC splitter without connector
PLC splitter with SC APC connector

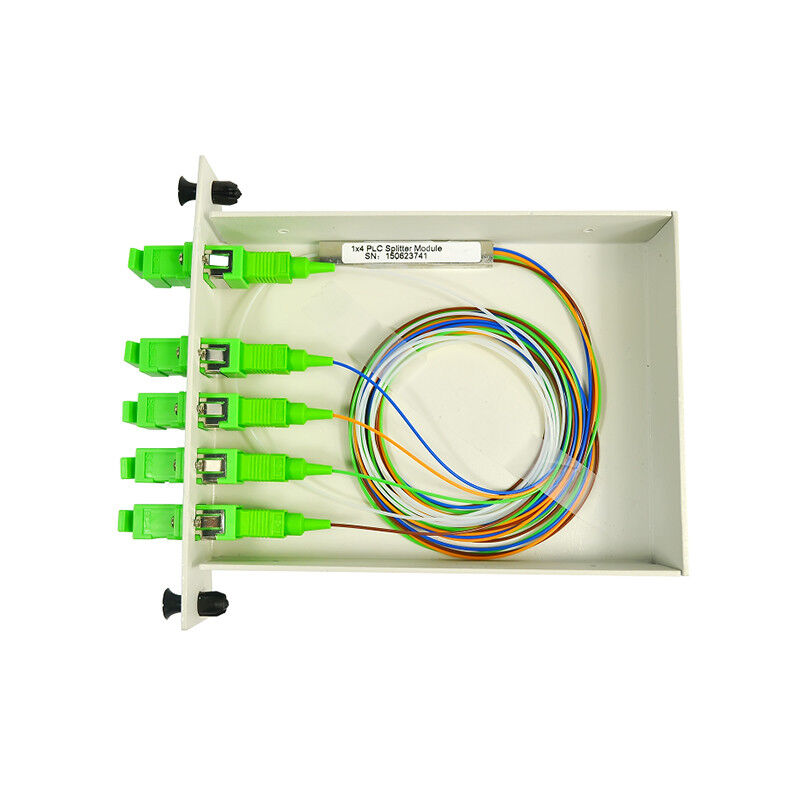

LGX PLC splitter with SC APC connector
Parameter/Type | Nx2(N=1or2) | Nx4(N=1or2) | Nx8(N=1or2) | Nx16(N=1or2) | Nx32(N=1or2) | Nx64(N=1or2) | |||||
Fiber | 9/125 um SMF-28e or customer appoint | ||||||||||
Operating Wavelength(nm) | 1260~1650(nm) | ||||||||||
Insertion Loss | ≤3.9dB | ≤7.1dB | ≤10.3dB | ≤13.3dB | ≤16.3dB | ≤19.8dB | |||||
Loss Uniformity(dB) | ≤0.6dB | ≤0.6dB | ≤0.8dB | ≤1.2dB | ≤1.5dB | ≤2.0dB | |||||
Polariation Dependent Loss | ≤0.15dB | ≤0.15dB | ≤0.2dB | ≤0.2dB | ≤0.2dB | ≤0.3dB | |||||
Return Loss | UPC≥50dB APC≥60dB | ||||||||||
Directivity | ≥55dB | ||||||||||
Working Temperature(℃) | -40°C to +85°C | ||||||||||
