Fiber Optic OTDR Test Cable OTDR Launch Cable Box of 1000 Meter

Brand Name:	DYS/OEM
Model Number:	SC OTDR launch cable box
Price:	$50.00 - $158.00/sets

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Document:

Product Brochure PDF

Type:

Fiber Optic Cable, Testers &Tools

Number Of Conductors:

Product Name:

Fiber Fiber Optic OTDR Launch Cable Box

Connector Type:

SC FC ST LC APC Or UPC

Material:

Plastic Box

Length:

100~2000 M

Box Color:

Yellow, Black

Application:

FTTX

Function:

Testing

No. Of Fiber:

Use:

FTTX

Port:

Shenzhen

Packaging Details:

Individual box or according to customer's request

Supply Ability:

5000 Set/Sets per Day

Product Description

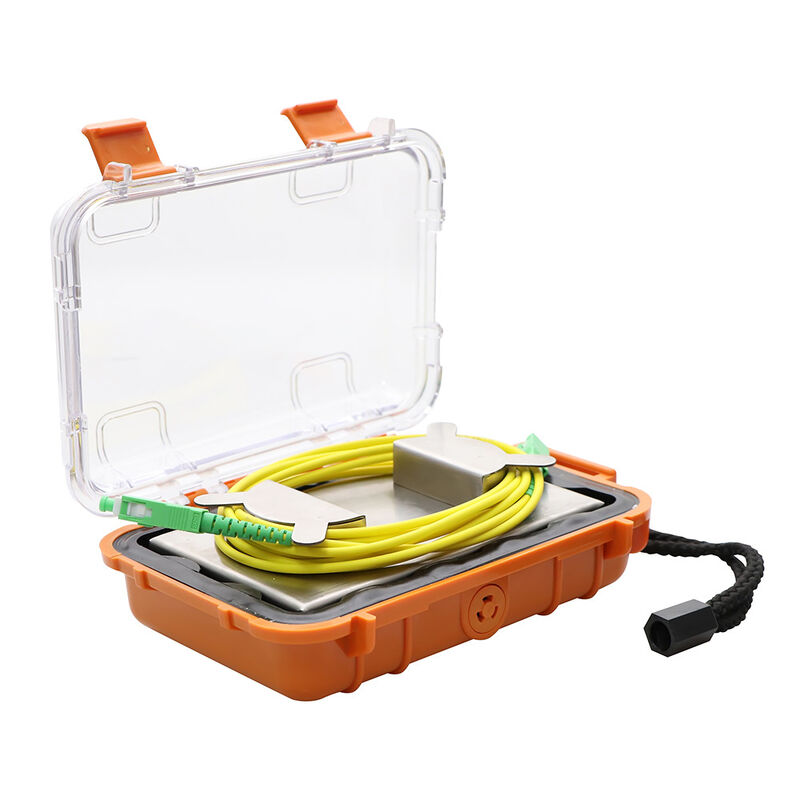

Fiber Optic OTDR Test Cable OTDR Launch Cable Box of 1000 Meter

Description

Designed to aid in the testing of fiber optic cable when using an OTDR.The OTDR Launch Fiber box is used with Optical Time Domain Reflectometers (OTDR's) to help minimize the effects of the OTDR's launch pulse on measurementuncertainty.Available in many different configurations and fiber lenths.

APPLICATION

Use as OTDR launch/receive cable.
Test link loss with an OTDR.
Measure insertion loss and reflectance of near/far end connector.
Pulse suppressor for the first reflection at the beginning of a fiber.

FEATURES

Material:SR Polypropylene
Color:Blue and yellow
Weight:0.75kg/0.35kg(withour fiber)
Operating Temp:-40℃~+55℃
Typical Loss:<1dB @1310nm for 1000 meters
Fiber length:500m or 1000m

Name	SC,LC APC/UPC OTDR Launch Cable
Fiber Type	Single mode (9/125)
Cable length	1 km
Loss	≤0.5dBm / km
Wavelength(nm)	SM 1310/1550
Size	25156.5cm
Weight	800g
