Fiber Optic Connector Cleaning Box FTTH Fiber Optic Cleaning Cassette

Brand Name:	DYS/OEM
Model Number:	Fiber optical connector cleaner, Fiber optic cleaner
MOQ:	3 pieces
Price:	$6.50 - $15.00/pieces

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

RoHS; ISO9001:2008

Document:

Product Brochure PDF

Type:

Testers &Tools

Use:

FTTH

Warranty Time:

Network:

Wireless Lan, Bluetooth, Wired LAN, ONVIF, None, SDK, TCP, 4g, GSM, 3G

Connector Use:

LC ,SC, FC, ST, MU, MT ,DIN

Size:

125mm (Width) X 70mm (Height)

Environment:

-20°C To 50°C

Replacement Reel:

Yes

Port:

Shenzhen

Packaging Details:

Individual box or according to customer's request

Supply Ability:

20000 Piece/Pieces per Day

Product Description

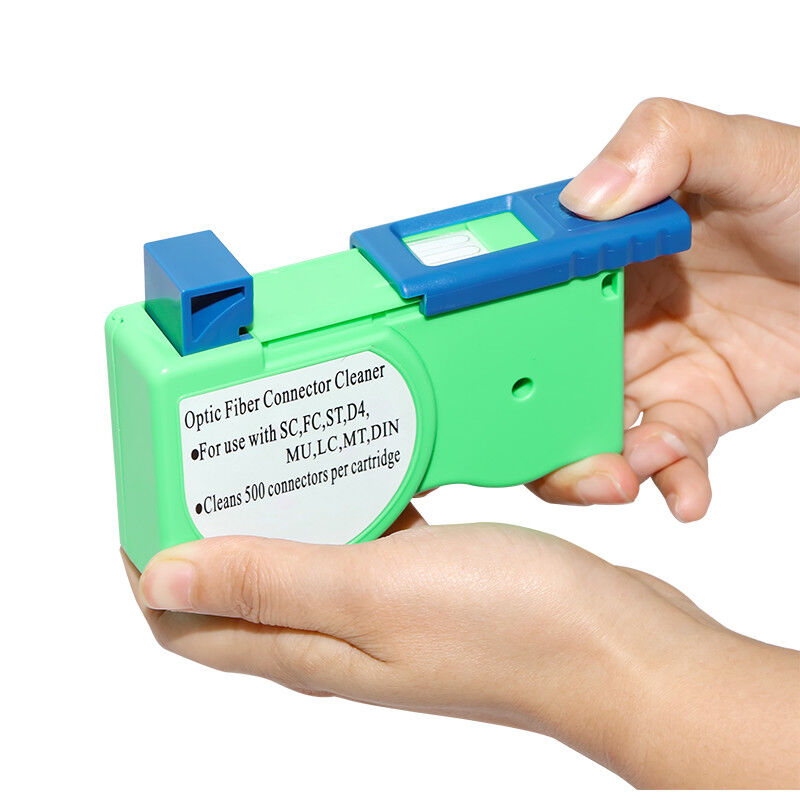

Fiber Optic Cleaning Tool Optical Fiber Connector Cleaner Box for SC FC MU LC ST D4 DIN

DYS is designed for effective cleaning of all fiber optic connectors with an accessible ferrule including MTP, MT-RJ and MTP connectors. The cassette will work on pinned as well as pinless connectors and is the only cleaning cassette that will clean the pinned MT-RJ and MTP connectors. With three clearly marked zones for MT-RJ pinned, MTP connector pinned and pinless connectors, the pin clearance runner behind the cleaning strip allows the cleaning strip to fit between the connector pins. With the cleaning instructions permanently marked on the cassette, the compact size and disposable design make it an excellent cleaning solution.

Features

Palm-sized and lightweight Easy and safe to use whether in the engineering lab, on the production line, or in the field

Usage

500 cleans per replaceable cleaning tape reel Lint free anti-static microfiber fabric cleaning tape Cleans a wide variety of UPC and APC connectors such as SC, FC, ST, LC, MU, E2000, and more

Specification

Designed so that all operators can consistently achieve high quality cleaning without alcohol or other solvents Cleaning tape is replaceable and cost effective One cleaning tape can be used for over 500 wipes Have excellent anti-static properties to avoid reattachment of dust to the ferrule after cleaning

Ferrule	2.5mm & 1.25mm
Cleans per reel	Over 500 times
Weight	0.2kg
Dimension W×H×D (mm)	130 × 75 × 40
Connectors cleaned	SC, SC2, FC,ST, DIN, D4 MU, LC, MT, MPO, MT-RJ without pins,

Company Profile

Shenzhen DYS Fiber Optic Technology is a leading company in developing and manufacturing advanced fiber optic products，mainly make fiber optic indoor and outdoor cable, CPRI waterproof jumper, MPO/MTP jumper , standard fiber optic jumper and PLC Splitter. DYS win the honorary title of National High-tech enterprise by Shenzhen government in 2014. With years of experiences in the fiber optic industry, our factory is fully equipped over 5000 square meters and more than 30 non dust production lines .About 250 well-trained staff and engineers are contributing to our proud products. We have 5 production lines for fiber optic cable, 2 high standard MPO/MTP jumper assembly lines, 15 production lines for standard jumper and 8 PLC Splitter production lines. The most advanced imported polishing equipment and testing instruments enable our products have super quality, such as Senko polishing machine, interferometer, automatic cleaning machine and OTDR ,JGR and so on. All of our optical products are RoHS compliant and DYS also obtained ISO9001, ISO14001 certification. Our high quality products and outstanding service win the customer from all the world, DYS fiber optic is looking forward to cooperate with you.

End User

FAQ

Q1. Do you provide OEM ODM service ? Yes, we can print your logo or label on the products or on the box. Q2. How can you guarentee the quality ? Build on our perfect quality management system, all of our products were 100% tested before the shipment. Q3. What is your delivery time ? Generally, sample: 3~5 working days. formal order: 7-10 working days. Q4. What's the method of shipment? We accept all shipment , such as Delievery,ocean transport, land transport , airport transport. Q5. What's the Payment? We accept all payments , such as LC,TT,DP,DA,Paypal,Western Union,. Q6. Do you provide sample service? A: Yes, we provide free or low price samples for you to test and check quality. Mixed samples are acceptable.
